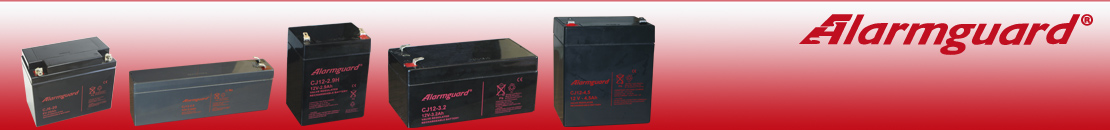

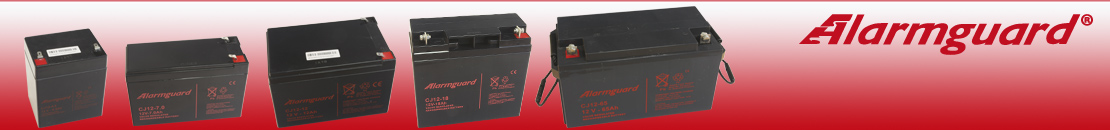

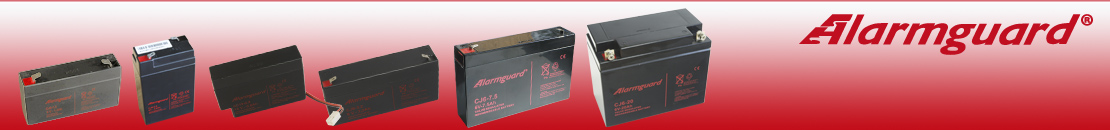

Alarmguard back-up batteries

   Alarmguard back-up batteries work in any position, they are sealed, maintenance-free, VRLA (AGM technology). Their application is universal, they are most often used for EZS, EPS, UPS, emergency lighting, railway signalling, DC power supplies, automatic control systems, etc.

   We currently offer about 20 types of Alarmguard back-up batteries, with a voltage of 6 or 12 V, with capacities from 0.8 Ah to 65 Ah. The optimal lifetime of Alarmguard batteries is 5 years (in "Stand-by" mode).

   The exclusive importer is the company MICRONIX, spol. s r.o.

Warning! Sealed maintenance-free VRLA batteries can be easily destroyed by an ordinary charger!

Types overview

Model	Preview	Voltage (V)	Capacity (AH/20h)	Length (mm)	Width (mm)	Height* (mm)	Weight (kg)	Type of contact
CJ6-1.3		6	1,3	97	24	58	0,28	Faston 4,7
CJ6-2.8		6	2,8	66	33	103	0,59	Faston 4,7
CJ6-3.2		6	3	134	34	66	0,67	Faston 4,7
CJ6-4.5		6	4,5	70	47	106	0,81	Faston 4,7
CJ6-7.5		6	7,5	151	34	100	1,26	Faston 4,7
CJ6-12		6	12	151	51	100	1,75	Faston 4,7
CJ6-20		6	20	157	83	125	3,21	13 x 14 x 2
CJ12-0.8		12	0,8	96	25	62	0,34	konektor
CJ12-1.3		12	1,3	97	43	58	0,57	Faston 4,7
CJ12-2.2		12	2,2	178	35	66	0,95	Faston 4,7
CJ12-2.6		12	2,6	178	35	66	0,91	Faston 4,7
CJ12-2.9H		12	2,9	79	56	105	1,1	Faston 4,7
CJ12-3.2		12	3,2	134	67	66	1,35	Faston 4,7
CJ12-4.5		12	4,5	90	70	107	1,6	Faston 4,7
CJ12-7		12	7	151	65	100	2,2	Faston 4,7
CJ12-12		12	12	151	98	101	3,56	Faston 6,3
CJ12-18		12	18	182	77	168	5,32	14 x 12 x 2
CJ12-26		12	26	167	175	125	8	countersunk thread M5
CJ12-40		12	40	197	165	170	13,2	countersunk thread M6
CJ12-65		12	65	348	167	178	19,2	countersunk thread M6

---
